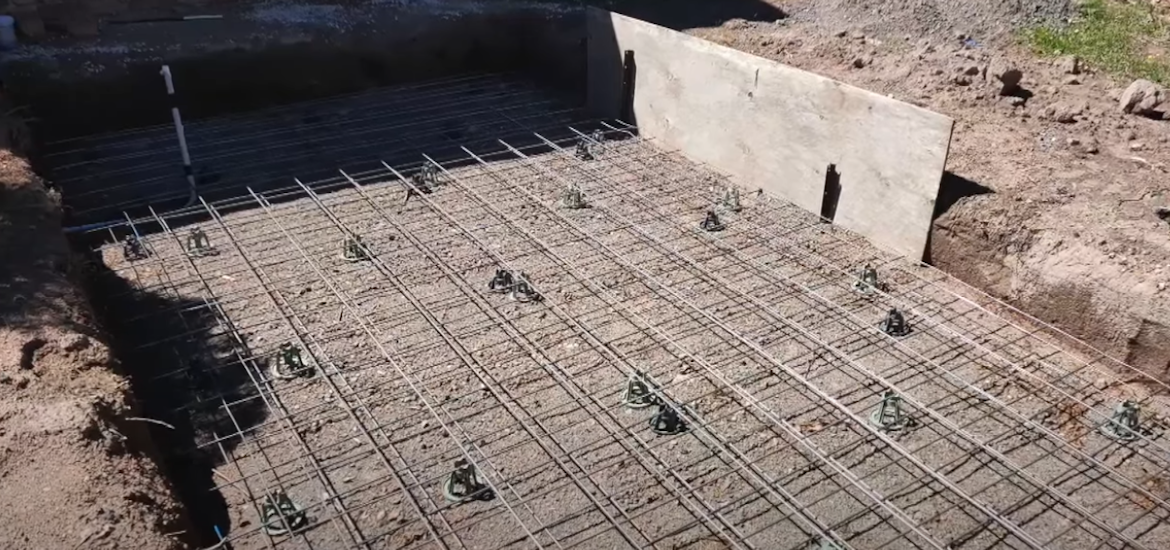

How to Build a Generic Concrete Slab for a Swim Spa

Constructing a stable and compliant base for your Spa World swim spa is crucial for safety and longevity. This article covers the essential design standards, construction criteria, and compliance requirements for a generic concrete slab designed to support a swim spa.

Key Takeaways

• Proper Generic Swim Spa Slab Construction: Ensure durability by following recommended construction practices, including reinforcement, vapour barrier, and concrete curing.
• Swim Spa Slab Standard Dimensions: Designed for swim spas up to 6200 mm long and 2500 mm wide, with a 150 mm thickness.
• Compliance: Meets NCC 2019 standards and Australian standards AS/NZS 1170, AS 2870, AS 3600, and AS 4100 for safety.
• Materials: Requires 25 MPa concrete with 65 mm slump, SL82 mesh reinforcement, and 60 mm clear cover.
• Exclusions: The information in this article is not for non-generic slab construction. Examples of that are: when the spa pool is larger than the Generic Dimensions, the soil does not comply with the generic type, and there are trees, slope or moisture issues.

Click the button below to access the swim spa generic slab design certificate of compliance.

If you're looking for a complete guide to constructing a generic portable spa pool concrete or pad, click the button below.

What are the Generic Slab Design Specifications for a Swim Spa?

When building a generic slab for a swim spa, specific standards ensure it safely supports the spa’s weight, covering slab thickness, concrete strength, and reinforcement.

In this section, we’ll outline the essential design criteria to ensure stability, safety, and compliance with building codes.

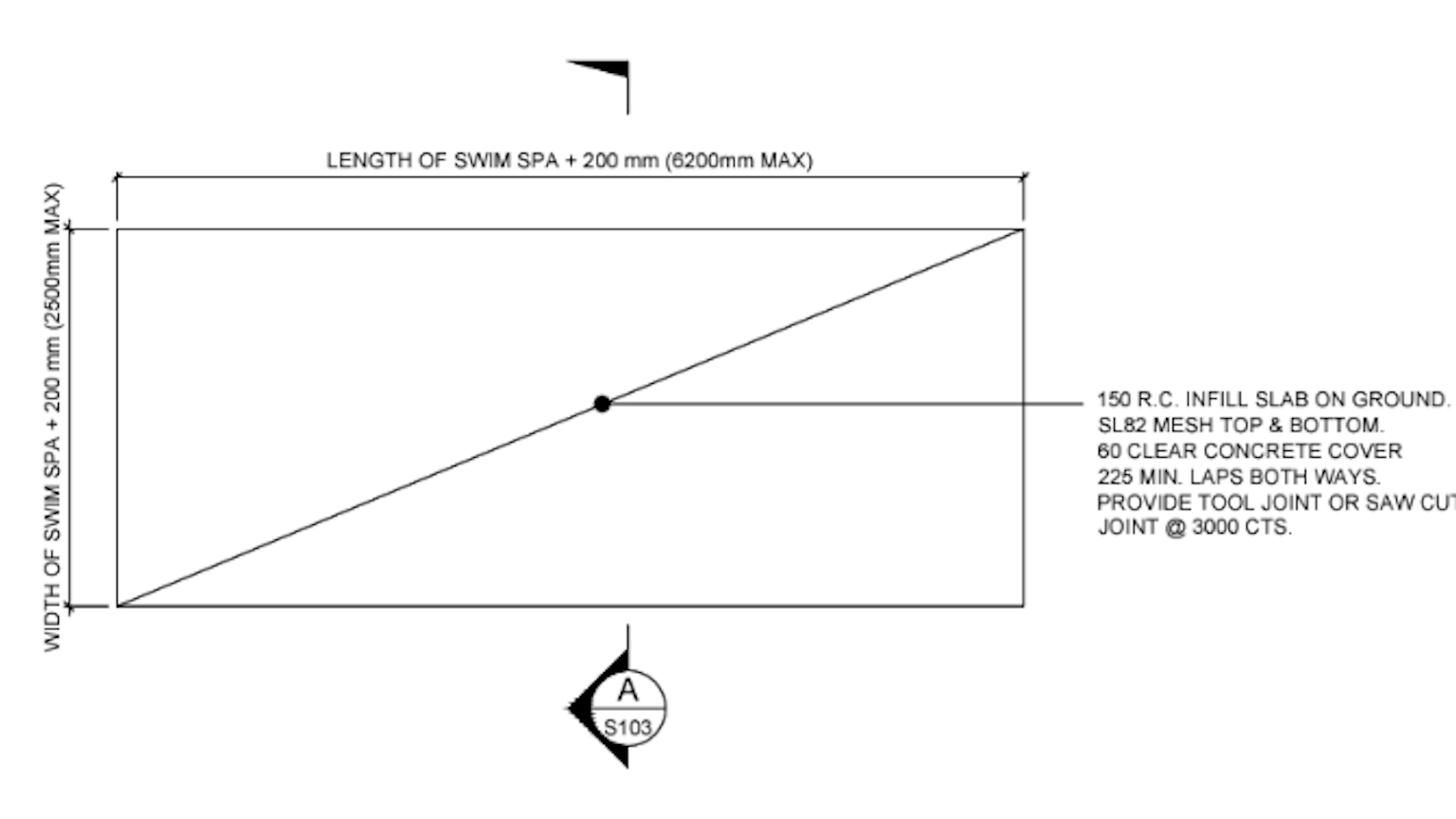

Generic Concrete Pad For Swim Spas - Plan View

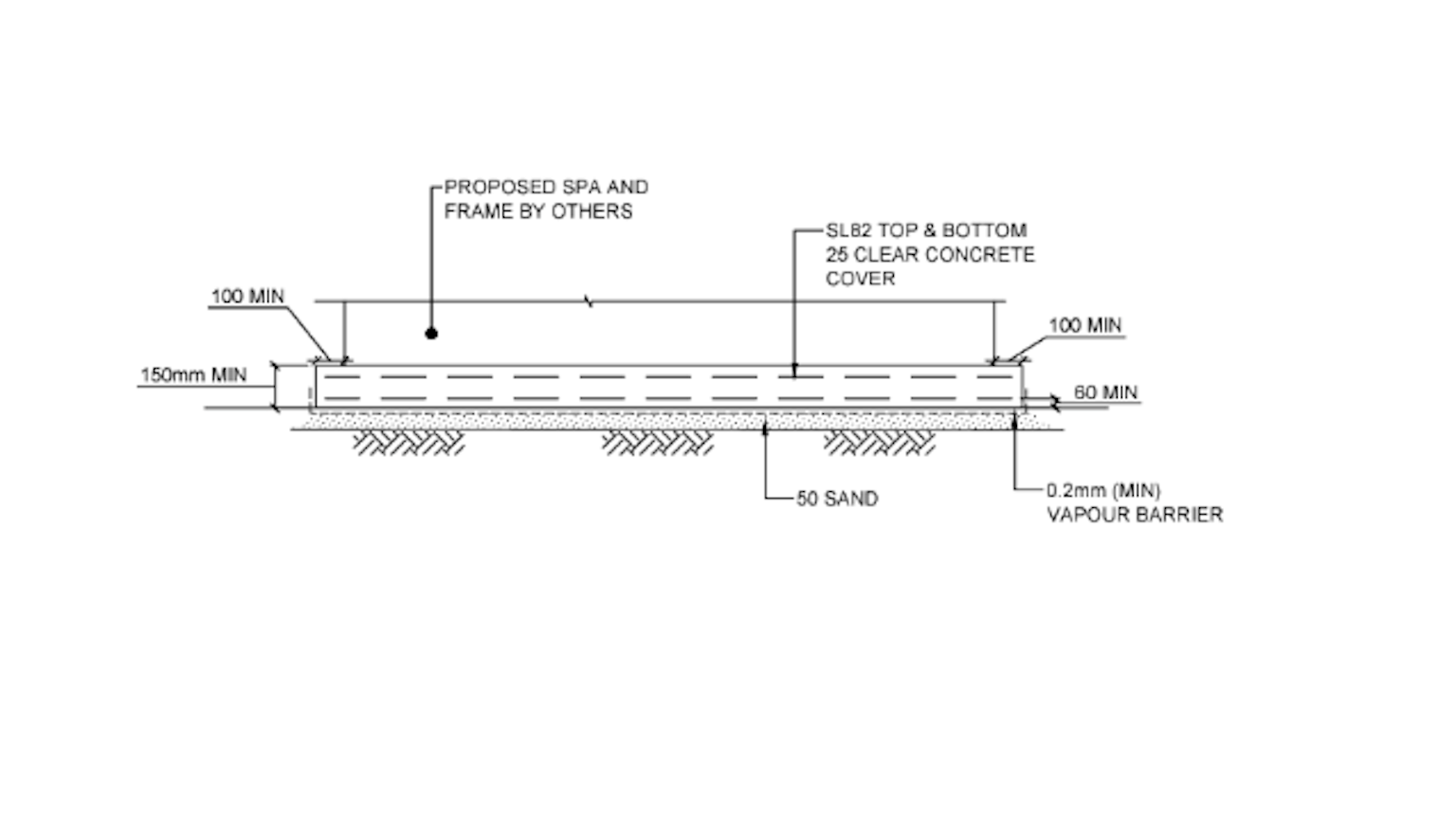

Generic Concrete Pad For Swim Spas - Side View

What are the Soil and Load-Bearing Requirements for a Generic Swim Spa Slab?

The slab’s performance is also affected by the soil it’s founded on. The requirements are:

Minimum Allowable Bearing Pressure: 50 kPa. Foundation Requirements: Edge beams and load-bearing ribs should be supported by undisturbed ground with sufficient bearing capacity as specified by AS 2870.

These criteria ensure that the slab has a stable base and can handle the weight without sinking or shifting.

In Summary

Constructing a compliant and sturdy slab is crucial for safely supporting a swim spa. Adhering to the recommended dimensions, materials, and reinforcement guidelines helps establish a stable and secure foundation.

If your site conditions vary or need adjustments, consulting a certified engineer can ensure compliance with local building standards and provide added assurance.
