How to use the controls and features of Jacuzzi^® J-400™ Collection Spas

Whether you’re just getting familiar with your Jacuzzi^® J-400™ Collection Spa or you’ve been using it for years, you’ll want to make sure you’re taking full advantage of all the features and controls it has to offer.

From the intuitive digital controls to the advanced filtration system, the Jacuzzi^® J-400™ Collection Spa is designed to provide you with the ultimate in relaxation and hydrotherapy.

In this article, we’ll take a look at the top features and controls of Jacuzzi^® J-400™ Collection Spas.

• What are the main Features and Controls of Jacuzzi^® J-400™ Collection Spa?
• How to use the Air Controls on Jacuzzi^® J-400™ Collection Spas
• How to adjust the individual jet flow on Jacuzzi^® J-400™ Collection Spas
• What are Jacuzzi^® J-400™ Collection Spa Lighted Cup Holders and how do they work?
• How to use the Massage Selector Valve on Jacuzzi^® J-400™ Collection Spa
• How to use the Waterfall feature on Jacuzzi^® J-400™ Collection Spa
• BLUEWAVE^® 2.0 Spa Stereo System Upgrade
• How to connect the BLUEWAVE 2.0 Wireless Audio System with your Bluetooth^® device
• SmartTub™ System
• How to connect the SmartTub™ app to your spa
• How to use CLEARRAY^® On Demand
• Jacuzzi^® J-400™ Collection Exterior Lights
• Jacuzzi^® Spas Adjustable headrests
• Jacuzzi^® Spas Indicator Light
• Jacuzzi^®Spas Underwater Light

What are the main Features and Controls of Jacuzzi^® J-400™ Collection Spa?

Here are some of the main features and controls you can expect with this collection:

• Air Controls
• Individual Jets
• Lighted Cup Holders
• Massage Selector
• Waterfall Feature
• BLUEWAVE^® 2.0 Spa Stereo System Upgrade
• SmartTub™ System
• CLEARRAY^® On Demand
• Exterior Lights
• Jacuzzi^® Spa Adjustable headrests
• Indicator Light
• Underwater Light

How to use the Air Controls on Jacuzzi^® J-400™ Collection Spas

Air controls are an essential component of hot tubs. Spa air controls regulate the pressure, temperature, and flow of the hot tub jets. These controls are typically located on the top sides of the spa.

The air helps to enhance the massage effect of the jets, making for a more relaxing spa experience. When the air control is open, more air is released into the jets, creating more massage bubbles and a stronger water stream.

Certain jet systems have their own “toggle” on/off air control. Each control introduces air into the water lines that supply specific jet groups. Simply press any air control button, or press the opposite side of the button to close.

Pro Tip: To minimise heat loss, all air controls should be closed when the spa is not in use. Certain ets may not draw air when Jets Pump 1 is running at low speed; this is considered normal.

How to adjust the individual jet flow on Jacuzzi^® J-400™ Collection Spas

The water flow through individual jets in your spa can be adjusted or turned off by rotating the outside jet ring. Some jets offer an adjustable centre nozzle that allows you to change the water discharge angle. To customise your personal massage, simply rotate the outside jet face.

Back to top

What are Jacuzzi^® J-400™ Collection Spa Lighted Cup Holders and how do they work?

Cup holders in Jacuzzi^® Spas are designed to keep glasses, cups and bottles secure while you enjoy a soak. Mounted on the top side of your spa, the cup holders feature a drainage hole on the bottom so that any excess liquid can easily drain away.

The Jacuzzi^® J-400™ Collection Spa features lighted cup holders that display soft light and illuminates the area around holders, creating a comfortable and inviting atmosphere for spa users.

Additionally, the lighted cup holders make it easier to locate drinks in the dark and illuminate the spa area for added safety.

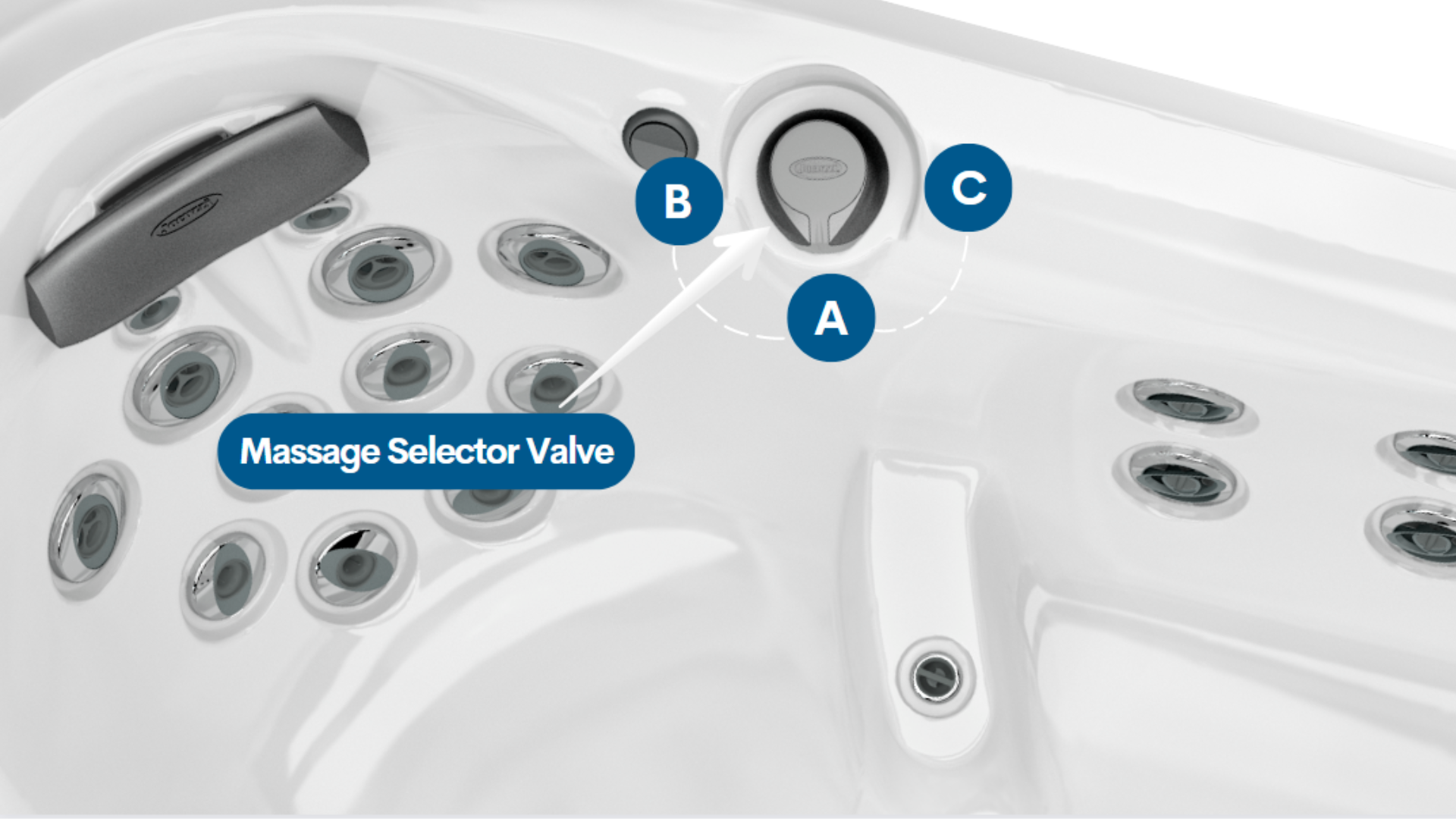

How to use the Massage Selector Valve on Jacuzzi^® J-400™ Collection Spa

Your Jacuzzi^® spa has a massage selector that allows you to choose the massage experience you want.

The Jacuzzi^® J-400™ Collection Spa massage selector consists of a valve that can be directed in three different positions.

Simply turn the valve to positions A (combo), B or C to divert water pressure to various jet groups.

Important reminders:

• The valve is intended to operate in positions A, B, or C for optimum performance.
• It is considered normal for sound levels within the valve to increase between these positions due to the large amounts of water flowing through it.
• For optimum filtration benefits, always leave this valve in position A when the spa is covered and select positions B or C for maximum jet performance during spa use.

Back to top

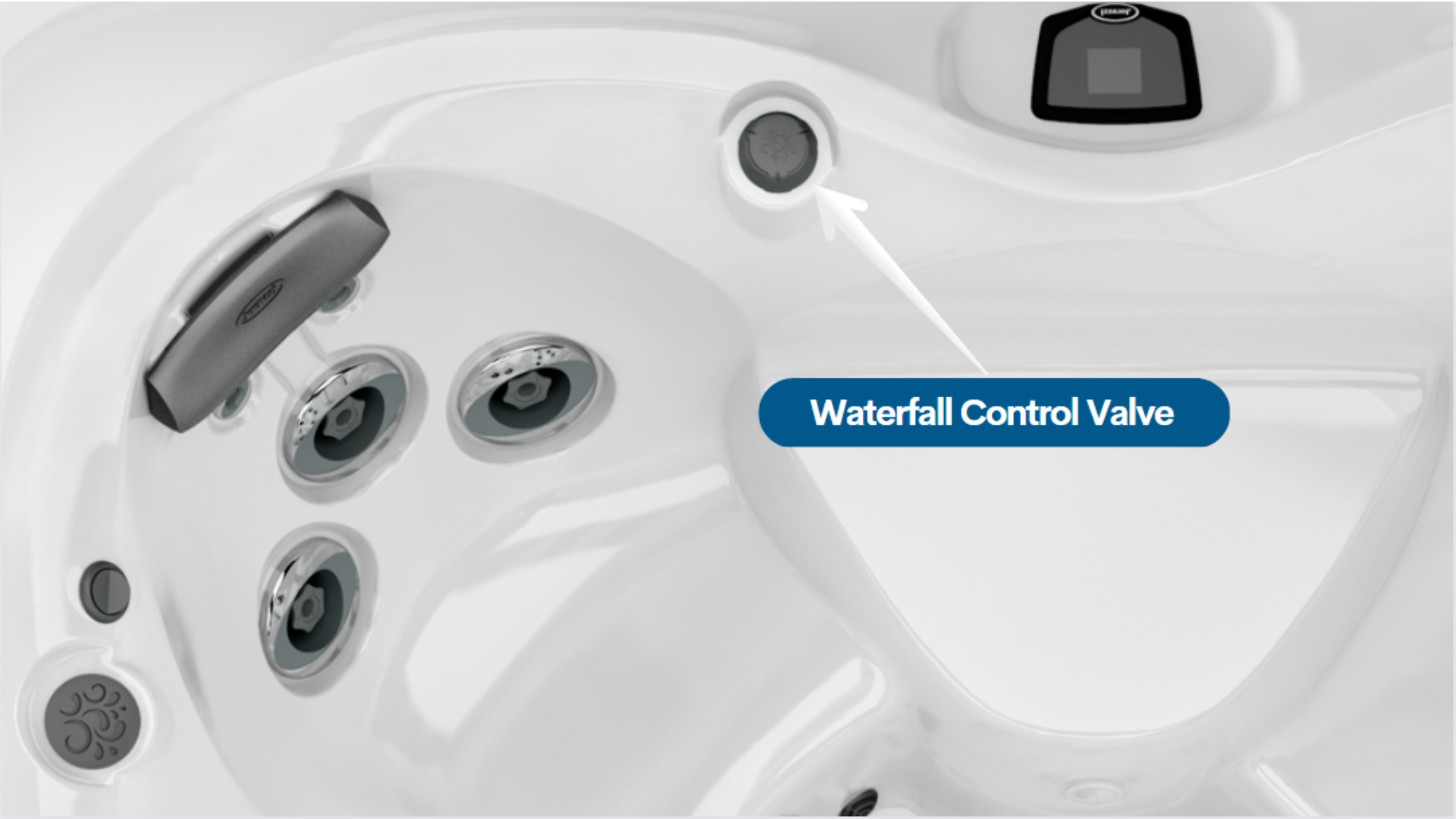

How to use the Waterfall feature on Jacuzzi^® J-400™ Collection Spa

The Jacuzzi^® Spa waterfall feature is a cascading wall of water that flows into the spa, creating a beautiful visual effect and providing a soothing sound.

The waterfall feature allows you to independently control it for a customised soothing effect. To operate this feature, please follow the instructions below.

• Turn the control valve counterclockwise to increase the waterfall output.
• Turn the control valve clockwise to decrease or turn off waterfalls.

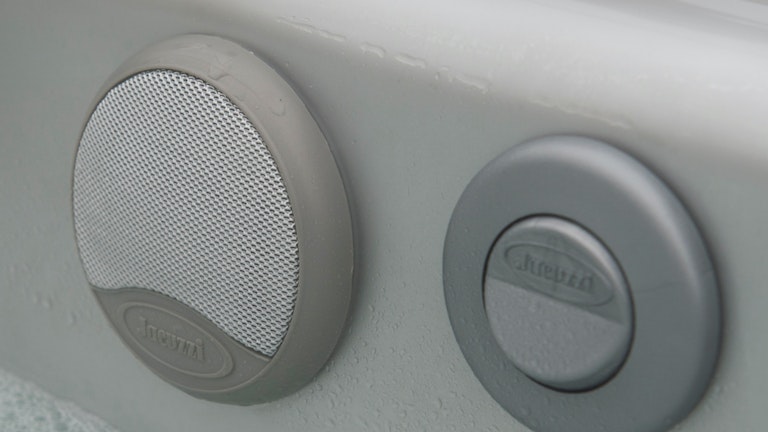

BLUEWAVE^® 2.0 Spa Stereo System Upgrade

The Jacuzzi^® J-400™ Collection is equipped with the optional Audio System to offer an enhanced spa experience. The BLUEWAVE^® 2.0 Wireless Audio System works with most Bluetooth^® wireless devices. An auxiliary device can be connected, via a 3.5 mm plug cable, located behind the front cabinet panel, if a Bluetooth device is not available. These models also include four high-fidelity spa-engineered speakers for unsurpassed sound quality and long life and an integrated powered subwoofer for superb acoustical sound.

Back to top

How to connect the BLUEWAVE 2.0 Wireless Audio System with your Bluetooth^® device

There are three easy steps to bridge a connection between the BLUEWAVE 2.0 Wireless Audio System and your Bluetooth^® device.

Click the button below to learn the step-by-step instructions on how to do this.

SmartTub™ System

Jacuzzi^® J-400™ Collection Spa comes with an optional SmartTub™ system that allows you to fully and remotely control your spa from your device. The system comprises hardware that uses cellular transmission for easier connection and a more dependable signal than WiFi and a downloadable app. This makes controlling your spa easy and convenient. If you are in the living room of your house or in another country, as long as you have a cellular connection, you can access the control settings on your Jacuzzi^®.

When the SmartTub™ hardware and app are connected, you will be able to:

• Adjust the temperature of the spa water
• Control spa jets and lighting
• Control and monitor energy output (when and how often you run the heating and filtration cycle)
• Access to information, tips, and videos to enable you to become an expert at operating your spa
• Receive notifications about power outages, issues and how to resolve them, as well as energy estimates
• Contact your spa dealer whether you are home or overseas

Click the button below to learn more about Jacuzzi^® SmartTub™ App.

Back to top

How to connect the SmartTub™ app to your spa

As mentioned above, the SmartTub™ system comes with a downloadable app that connects to the hardware.

Click the button below to learn the step-by-step guide on how to connect the SmartTub™ app to your spa.

How to use CLEARRAY^® On Demand

The Jacuzzi^® J-400™ Collection Spa is equipped with CLEARRAY^® Water Purification System that uses natural ultraviolet technology to sanitize your water, disinfecting bacteria, viruses, and algae. This water purification system has a UV bulb that must be replaced once a year.

To activate the CLEARRAY^® On Demand feature, continuously tap the CLEARRAY^® button on the control panel. You can activate the system for 1 hour, 2 hours, or 3 hours or deactivate the feature.

Important reminders:

• When the CLEARRAY^® On Demand is activated, the circulation pump and the CLEARRAY^® unit are ON.
• When the CLEARRAY^® system is on, due to a programmed or scheduled setting, the feature cannot be turned OFF.

Click the button below to learn the step-by-step instructions on how to program the CLEARRAY^® Timer on a Jacuzzi^® J-400™ Collection Spa.

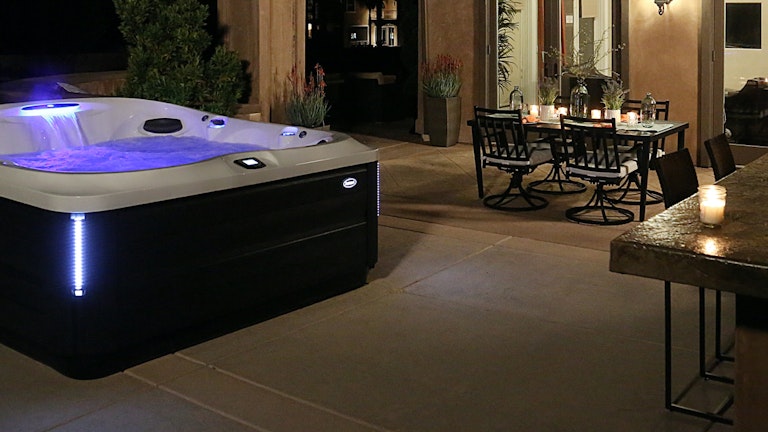

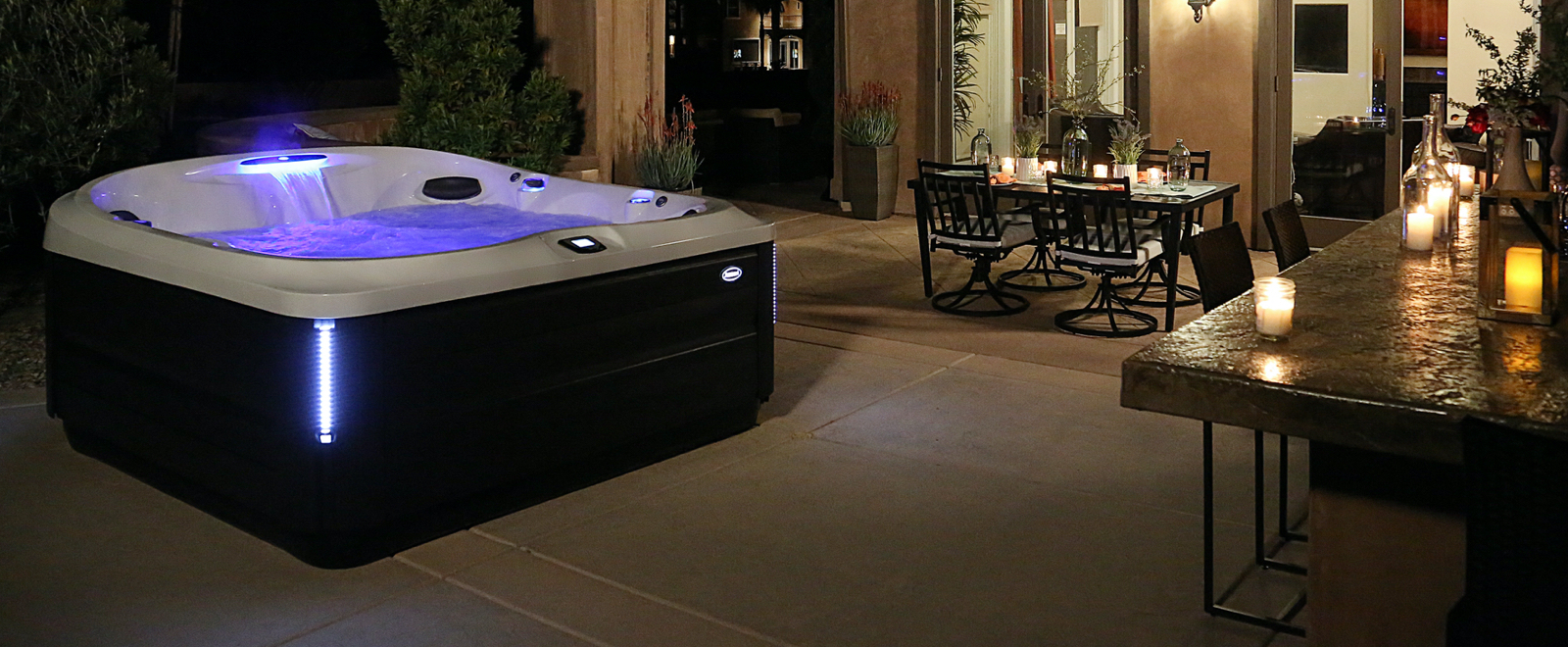

Jacuzzi^® J-400™ Collection Exterior Lights

The Jacuzzi^® J-400™ Collection Spa comes with optional exterior lights located on the corners of the cabinet panels. These light fixtures provide a soft light luminance around the spa that helps create a relaxing atmosphere in your space.

The lights have a timeout period of 8 hours and can be activated through the Light button or via the Menu button on the control panel.

Important reminders:

• The only light colour option is white.
• At start-up, the exterior lights flash on and off to indicate a connection.

Click the button below to learn the step-by-step instructions on how to operate the Exterior Lights Feature on a Jacuzzi^® J-400™ Collection Spa.

Jacuzzi^® Spas Adjustable headrests

Jacuzzi^® J-400™ Collection Spa features headrests to provide optimal comfort and proper neck, shoulder and head support while relaxing in a Jacuzzi^® hot tub. By providing this support, the headrests help prevent discomfort due to long soaks in the hot tub and can also help reduce stress and tension.

Jacuzzi^® Spa headrests are made from high-quality EVA. These headrests are designed to be durable and chemical resistant.

In order to extend the life of your Jacuzzi^® headrests, cleaning them regularly is important.

Click the button below to learn a step-by-step guide on how to clean Jacuzzi^® headrests.

Jacuzzi^® Spas Indicator Light

The indicator light located on the front cabinet panel of the spa is an early detection system that will notify you when the spa needs immediate attention. A solid white light indicates that all operations are normal. A solid red light indicates that immediate attention is required to clear or fix an error code.

To learn more about error codes and messages on the J-400™ Collection Spa control panel, please click the button below.

Jacuzzi^®Spas Underwater Light

The Jacuzzi^® Underwater Light feature is designed to provide an enhanced experience in the bath or spa. It’s an underwater lighting system that includes multi-colour footwell light that creates a beautiful and soothing atmosphere for relaxation. It also enables users to adjust the lighting to match their mood or desired ambience.

The coloured LED light system offers colour variations and different unique random modes for enhanced spa enjoyment.

Back to top

In Summary

We hope this guide has given you a better understanding of how to use the controls and features of your Jacuzzi^® J-400™ Collection Spa.

You can find more details about these features in your spa’s instruction manual.

For further information, please contact our customer support team. We are here to help.
